Quick Menu
Overview
- Australian Made
- Installation Economics
- Operation Efficiences
- Abrasion and Chemical Resistant
- Treet root intrusion resistance
- Smooth bore for hydraulic performance
- Low embodied energy for environmental benefits
Additional Information
Requires DN225 Rubber Ring Iplex Code: GERSEW225
Product Data Sheet
View
Product Properties
Size/Diameter
225 mm
Rating
SN20
Length
3.0 m
Primary Material
POLYPROPYLENE
Joint Type
RRJ
Rubber Ring Material
SBR
Colour
Grey outer corrugated wall with light green inner liner
Minimum Cover Depth
Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant
36
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50 °C Re rating is applied for Temperatures >30℃
Socket Deflection
Up to 2°
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 Years
Markings
Iplex Pipelines, DN, SN20, PP, Date of Manufacture, SewerMAX+®
Mechanical Properties
Density - Specific Gravity
0.9
kg/m3
Yield Strain
0.06
Yield Stress
28MPa
Tensile Modulus
28 MPa
Hardness Shore D
60
Poissons Ratio
0.45
Ring Bending Modulus - 3mins
1300MPa
Ring Bending Modulus - 50yrs
342 MPa
Thermal Properties
Coefficient of Thermal Expansion
15 x 10⁻⁵ / ℃
Thermal Conductivity
0.22W/m.K
Specific Heat
1920 J/kg/°C
Vicat Softening Temperature
95°C
Flammability
Flammable
Dimensions
Size/Diameter
225 mm
Weight
18
Crate Quantity
8
Crate Weight
128 kg (16 kg per crate)
Wall Thickness
2.5 mm
Socket Depth
135 mm
Max Socket Nominal OD
305 mm
Witness Mark Detail
135mm
Socket Length
128 mm
Standards & Accreditations
Product Standard
AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'
Product Approvals and Appraisals
StandardsMark Certification SMKP20603
Warranty
1 Year

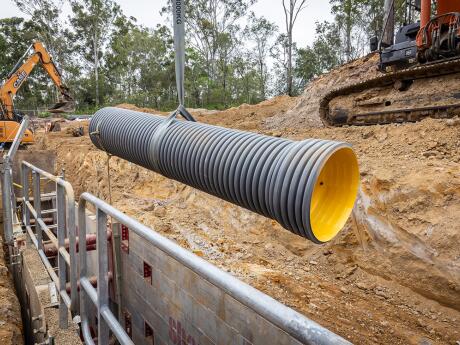

Learn more about our
SewerMAX products
