RACCORD

At Iplex we work hard to deliver products and solutions that provide long term value to our customers and stakeholders. The Raccord Plast brand has a reputation as a high-quality fitting that has been distributed into the Australian market for over 20 years.

Products / PVC Pressure System / RACCORD /

Share with:

Our RACCORD range

Use the filters below to refine your search criteria

Sort A-Z

Show Filters

Product Details

Certifications & Approvals

Technical Guide

Features & Benefits

Advantages

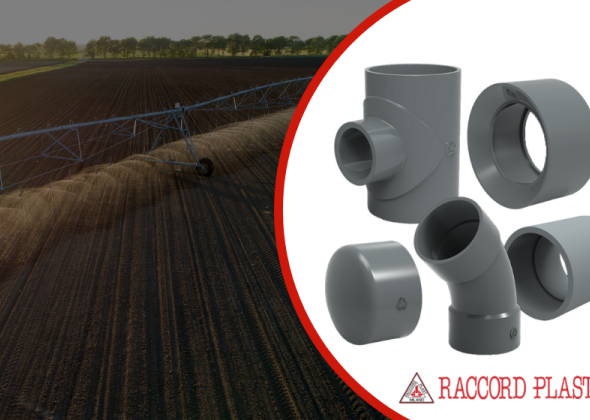

Raccord Plast are an Italian manufacturer and their large bore fittings have been primarily used for swimming pool and irrigation applications.

Features	Benefits
Excellent internal/external corrosion resistance	Long service life and reduced need for ongoing repairs, resulting in lower maintenance costs over the product’s lifetime.
Compatible with pipes made to Australian Standard AS/NZS 1477 “PVC pipes and fittings for pressure applications” Series 1 dimensions	No fuss-jointing with Solvent Weld Joints or Bolted Flange Joints
Lightweight	Ease of handling and reduced laying costs
Suitable for use with potable water	Broad range of applications
Wide product range	Including PVC bends, elbows, reducing bushes, couplers, reducing couplers, caps, toes, reducing tees and stubs.

Product Details

Product dimensions

Joint

Product Code	Product Type	Nominal Size	PN Rating
P00510200150	Reducing Bush	200x150	PN10
P00510225150	Reducing Bush	225x150	PN10
P00510225200	Reducing Bush	225x200	PN10
P00510250150	Reducing Bush	250x150	PN10
P00510250200	Reducing Bush	250x200	PN10
P00510250225	Reducing Bush	250x225	PN10
P00508300150	Reducing Bush	300x150	PN8
P00508300200	Reducing Bush	300x200	PN8
P00508300225	Reducing Bush	300x225	PN8
P00508300250	Reducing Bush	375x250	PN8
P00505375250	Reducing Bush	375x250	PN5
P00505375300	Reducing Bush	375x300	PN5
P00610200	End Cap		PN10
P00710200	Coupling	200	PN10
P00710225	Coupling	225	PN10
P00710250	Coupling	250	PN10
P00708300	Coupling	300	PN8
P00705375	Coupling	375	PN5
P00810200150	Reducing Coupling	250x150	PN10
P00810225200	Reducing Coupling	225x200	PN10
P00810250200	Reducing Coupling	250x200	PN10
P00810250225	Reducing Coupling	250x225	PN10
P00808300150	Reducing Coupling	300x150	PN8
P00808300200	Reducing Coupling	300x200	PN8
P00808300225	Reducing Coupling	300x225	PN8
P00805375250	Reducing Coupling	375x250	PN5
P00805375300	Reducing Coupling	375x300	PN5
P01010200	Elbow	200	PN10
P01010225	Elbow	225	PN10
P01010250	Elbow	250	PN10
P01008300	Elbow	300	PN8
P01005375	Elbow	375	PN5
P01310200	Elbow	200	PN10
P01310225	Elbow	225	PN10
P01310250	Elbow	250	PN10
P01308300	Elbow	300	PN8
P01305375	Elbow	375	PN5
P01605375S	Stub Flange	375	PN5
P01605375R	Backing Ring	375	PN5
P01610150	Backing Ring	150	PN10
P01610200	Backing Ring	200	PN10
P01610225	Backing Ring	225	PN10
P01608250	Backing Ring	250	PN8
P01608300	Backing Ring	300	PN8
P01910200200	Equal Tee	200	PN10
P01910250250	Equal Tee	250	PN10
P01908300300	Equal Tee	300	PN8
P01904375375	Equal Tee	375	PN4
P01910200150	Reducing Tee	200x150	PN10
P01910250150	Reducing Tee	250x150	PN10
P01910250200	Reducing Tee	250x200	PN10
P01908300150	Reducing Tee	300x150	PN8
P01908300200	Reducing Tee	300x200	PN8
P01904375300	Reducing Tee	375x300	PN4
P01910225225	Equal Tee	225	PN10

Thermal Properties

Property	Value & Unit
Max Continuous Service Temperature	50°C
Specific Heat	1045 J/kg/°C
Thermal Conductivity	0.138-0.150 W/m/°C
Coefficient of Thermal Expansion	7 x 10-5 / °C
Vicat Softening Temperature	Approx. 80°C

PVC-U Pipe is non-conductive and cannot be used for earthing electrical equipment.

Property	Value & Unit
Volume Resistivity	1016 ohm.cm (60% RH)
Surface Resistivity	1013 - 1014 ohm
Power Factor (at 20°C)	0.015 - 0.020
Coefficient of Thermal Expansion	7 x 10-5 / °C
Dielectric Constant (at 25°C)	3.4 - 3.6 (60 Hz)

Temperature Effects

PVC-U material is suitable for service temperatures between 0°C and 50°C, it is self-extinguishing and does not support combustion when the source of ignition is removed.

PVC-U material should not be used for continuous service temperatures above 50°C, as deformation of the pipe may result.

Impact Strength

PVC-U pipes and fittings have good impact resistance. However, at very low temperatures (e.g. Below 5°C) the impact resistance of PVC-U materials is reduced. Therefore, when installing PVC-U at low temperatures extra care must be taken when handling and inserting pipes and fittings.

PVC-U pipes are however installed in some of the coldest regions of Europe and North America in large quantities without difficulty.

Chemical Resistance

PVC-U materials must not be used with aromatic or chlorinated hydrocarbons, ketones, esters and ethers.

Colour and Markings

The Raccord fittings are manufactured in a dark grey colour.

Certifications & Approvals

Standards and approvals

The Raccord Plast fittings are manufactured with dimensions in accordance with Australian Standards AS/NZS1477 “PVC pipes and fittings for pressure applications”.

Installation & Handling
