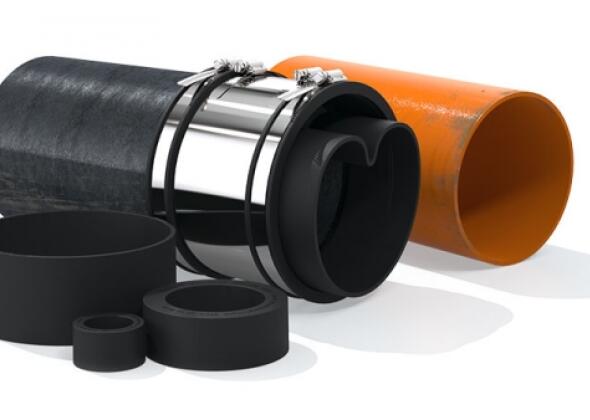

Fernco Couplings and Bushes
Iplex offers an extensive range of Fernco (formerly known as Flexseal) couplings and bushes, providing an inexpensive and reliable low-pressure connection solution. These simple-to-install, flexible EPDM rubber couplings are perfect for drainage pipe connection, repair, and displacement prevention.
Fernco couplings are a reliable solution for pipe repair and maintenance. These simple yet effective connectors can be fitted, forming an airtight and watertight seal. Also known for their versatility, Fernco couplings and bushes have broad applications across housing, industrial sites and agriculture.
Filters CLOSE
Our Fernco Couplings and Bushes range
Use the filters below to refine your search criteria
Technical Guide
Features & Benefits
Applications
Our wide range of Fernco couplings and bushes are suitable for installation in a broad spectrum of pipeline applications, ensuring secure and flexible connections across various pipe materials and diameters. They are commonly used for:
- Joining plain-ended pipes: ideal for creating secure connections between pipes with un-lipped ends.
- Connecting dissimilar pipeline materials: Fernco couplings and bushes can be used to connect different piping systems across virtually any pipe material.
- Pipeline repair & maintenance: facilitates efficient fixes and upkeep of existing pipe networks.
- Connecting varied pipe lengths: perfect for joining short or cut sections of pipe.
- Post-construction connections: enables adding new sections to established pipelines after initial construction.
- Lateral reconnection: useful for re-establishing connections to renovated sewer lines.
- Accommodating differing diameters: when paired with bushes, they can seamlessly connect pipes of varying sizes.
Advantages
|
Features |
Benefits |
|
Resistant to chemicals, fungus, sewer gases and ultraviolet rays. |
Longer service life and reduced maintenance costs. |
|
Made from molded EPDM rubber body. |
Forms a permanent airtight and watertight seal. |
|
Two 316 grade stainless steel clamp bands. |
Easy to fit and install; can be tightened onto pipes using basic tools (nut driver and torque wrench) for quick installation. |
|
Allows for repair of existing pipe systems by replacing short sections of pipe. |
Cost-effective, efficient solution, minimising disruption and wastage. |
|
Complies with AS/NZS 4327-1995 – Metal-banded flexible couplings for low-pressure applications. |
Guarantees adherence to Australian and New Zealand standards. |
|
Wide range of diameters. |
Including couplings, bushes and multibushes covering a wide range pipe diameters for various applications. |
Product Details
Certifications & Approvals
Installation & Handling
Installation and testing
Installation of Fernco couplings is straightforward:
- Slide the coupling over the pipe ends to be joined.
- Position the coupling centrally over the joint.
- Tighten the stainless steel clamps evenly to the specified torque (typically 60 inch-lbs).
Ensure that the pipes are properly aligned and that the coupling is securely fastened to prevent leaks.
