Quick Menu
Overview
- Australian Made
- Abrasion and Corrosion Resistant
- Treet root intrusion resistance
- Smooth internal bore for hydraulic performance
- Low embodied energy for environmental benefits
Additional Information
Requires 2 x DN450 BlackMax Rubber Ring Iplex Code: GERSEW450
CAD PDF
View
Product Properties
Size/Diameter
450 mm
Rating
Non Pressure
Primary Material
POLYPROPYLENE
Joint Type
RRJ
Rubber Ring Material
Styrene Butadiene Rubber (SBR)
Colour
Black external wall with yellow internal bore
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Average Number of Joints per Litre - Iplex Lubricant
18
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50 °C Re rating is applied for Temperatures >30℃
Socket Deflection
up to 2°
Markings
Manufactures name and/or registered trademark > Nominal Size > PP > Date of Manufacture > Place of Manufacture
Dimensions
Size/Diameter
450 mm
Weight
7.7
Socket Length
211 mm
Standards & Accreditations
Product Standard
AS/NZS 5065 'Polyethylene and polypropylene pipes and fittings for drainage and sewerage applications'

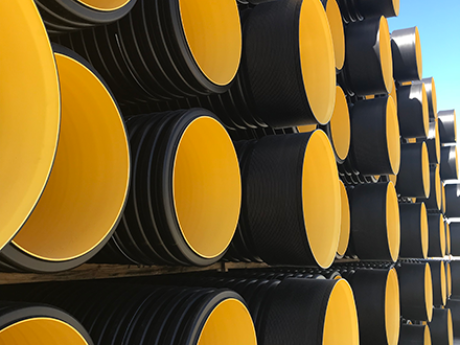

Learn more about our
